Proudct Detail
Product Name:

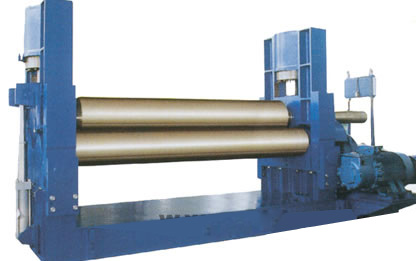

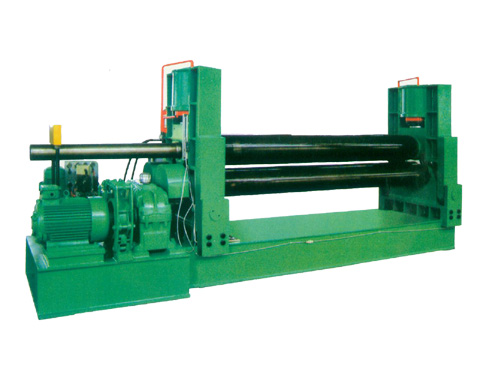

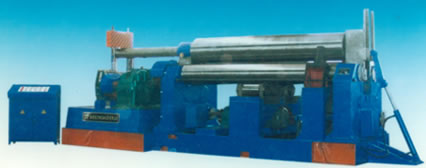

3-Roller Symmetrical hydraulic rolling

Model: QR-W11-40x3000
Categories: Hydraulic 3-Roller Symmetrical
View En large Image
This machine structure pattern three roller symmetrical type, have roller act as vertical sport of going up and down in two roller central symmetrical position, but acquisition through the mother’s worm transmission of pole silk of silk, the roller two times does rotatory sports, through moderate output gear wheel of plane and lay roller gear wheel clench the teeth , make for roll panel offer torsion.
Description:
Have roller act as vertical sport of going up and down in two roller central symmetrical position, but acquisition through the mother’s worm transmission of pole silk of silk, the roller two times does rotatory sports, through moderate output gear wheel of plane and lay roller gear wheel clench the teeth , make for roll panel offer torsion.

Specification Max. thickness
(mm)		 max.width
(mm)		 Yield limit
(MPa)		 Speed (m/min) Min. Diameter (mm) Upper roller diameter(mm) Lower roller diameter(mm) Lower roller center distance (mm) Main motor power (kw) Hydraulic motor power (kw)
W11-30×2000 30 2000 245 4 1200 360 290 480 22 7.5
W11-25×2500 25 2500 245 4 1200 370 300 480 22 7.5
W11-30×2500 30 2500 245 4 1200 420 360 550 30 11
W11-25×3000 25 3000 245 4 1200 430 370 550 30 11
W11-30×3000 30 3000 245 4 1200 450 390 600 30 11
W11-40×2500 40 2500 245 3.5 1400 500 400 600 37 15
W11-40×3000 40 3000 245 3.5 1600 540 440 600 45 18.5
W11-50×3000 50 3000 245 3.5 2000 580 480 750 55 22
W11-60×3000 60 3000 245 3.5 2400 660 560 800 75 30
W11-70×3000 70 3000 245 3.5 2800 710 620 850 90 37
W11-80×3000 80 3000 245 3.5 3200 770 680 900 90 37
W11-90×3000 90 3000 245 3.5 3600 820 730 950 110 45
W11-100×3000 100 3000 245 3.5 4000 860 770 1000 110 45
W11-110×3000 110 3000 245 3.5 4400 900 810 1080 132 55
W11-120×3000 120 3000 245 3.5 4800 950 860 1160 132 55
