Proudct Detail
Product Name:

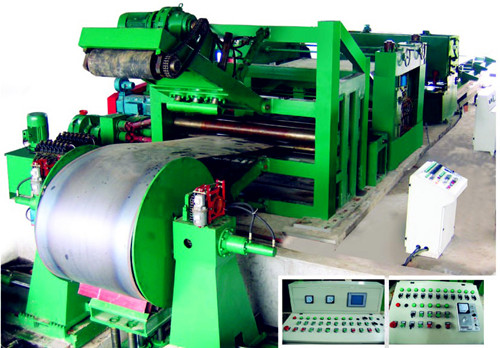

heavy gague cut to length line

Model: QR-TQ44K-20x2000
Categories: Heavy Gague CTL
PERFORMANCE AND STRUCTURE QR-TQ44K cut-to-length line for heavy gauge is an upgraded type of medium gauge line. Since steel mills continuously putting out thicker and wider steels, our company specially designed and produced this series of lines to satisfy the demands for decoiling and levelling those coils.
Items                                           Units                Select range
Thickness of the board                 mm       4~6、2~8、5~20、6~25、8~30
Width of the standard board       mm       1500、2000、2200、2500、3000
Decoiler  bearing                          t               20、30、45
Leveling accuracy                        mm/m2               1.5、2.0
Length accuracy                          mm                    ±1.0
Max. line speed                           m/min            6、10、15、18
Total Power                                 kw                  160~420
Description and specifications given in this catalogue are subject to technical files.
