Proudct Detail
Product Name:

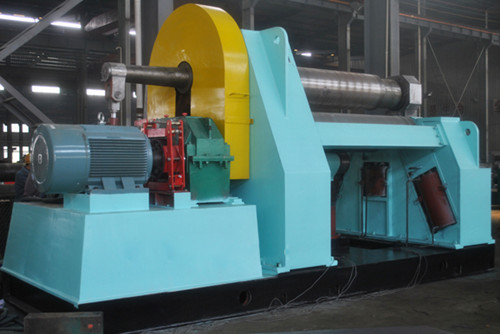

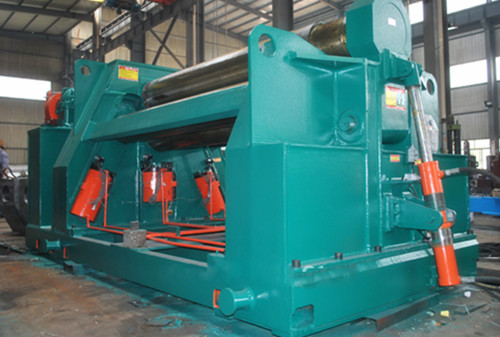

4-Rollers Rolling Machine

Model: QR-W12-30x3000
Categories: 4-Rollers
View En large Image
This machine structure pattern four roller type, have roller final drive, through moderate output gear wheel of plane and have roller gear wheel clench the teeth, make panel for one and offer the torsion;
Description:

Make the roller and make vertical sports of hoisting or lower, the hydraulic oil in the hydraulic pressure jar acts on the piston and gets , in order to clamp the panel, it is the hydraulic transmission; On the bottom there are side rollers and do sports of inclining along the framework guide on both sides of the roller, pass the mother’s worm gear worm transmission of pole silk of silk; This machine advantage is that a panel tip is curved in advance and a round can go on on the same equipment.

Specification type The largest thickness mm of a board The largest width mm of a board A board surrenders limit Mpa Speed m/min of a board Fully loaded with the minimum diameter mm Have the diameter mm of the roller Make the diameter mm of the roller Diameter mm of the side roller The biggest journey mm of the side roller Side roller changes speed m/min Power kw of the main electrical machinery
W12-25*2000 25 2000 245 4 800 350 320 240 240 80 22
W12-20*2500 20 2500 245 4 640 350 320 240 240 80 30
W12-30*2000 30 2000 245 4 1000 400 360 240 240 80 37
W12-25*2500 25 2500 245 4 800 400 360 240 240 80 37
W12-35*2000 35 2000 245 4 1200 420 380 210 210 80 37
W12-30*2500 30 2500 245 4 1000 400 360 230 230 80 37
W12-40*2000 40 2000 245 4 1400 480 400 420 420 80 45
W12-45*2000 45 2000 245 4 1600 500 450 280 280 80 45
W12-35*2500 35 2500 245 4 1200 480 400 420 420 80 45
W12-40*2500 40 2500 245 4 1400 500 450 380 380 80 45
W12-45*2500 45 2500 245 4 1600 530 480 450 450 80 63
W12-35*3000 35 3000 245 4 1200 500 450 380 380 80 45
W12-45*3000 45 3000 245 4 1600 560 500 450 450 80 63
W12-55*2500 55 2500 245 4 2000 600 550 500 500 78 75
W12-55*3000 55 3000 245 4 2000 620 560 500 500 78 75
W12-65*3000 65 3000 245 4 2400 670 600 550 550 78 110
