Proudct Detail
Product Name:

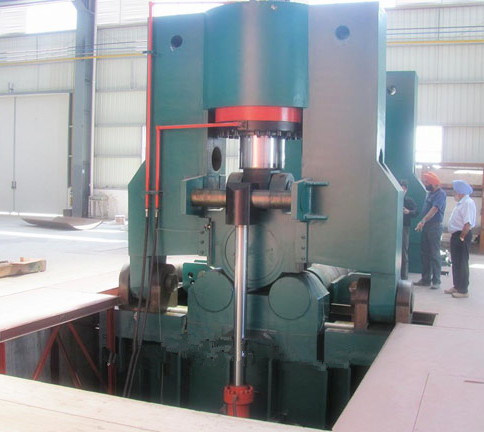

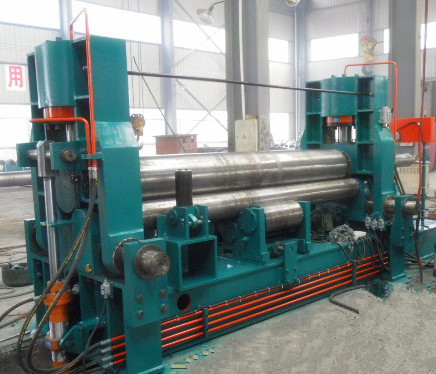

CNC Upper Roller Universal Large Size

Model: QR-W11S-40x2500
Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control. Man-machine dialogue controls the high-efficient intelligence of interfaces to operate Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient!
Description:
The upper roller can move vertically as well as horizontally, it can finish the pre-bending work and coiling work at the same machine.
The upper roller is drum-type design, so it has the anti-deformation function. There is equipped the support rollers under the lower rollers it can help to coil the high precision products.
The lower rollers are fixed symmetrically deployed relatively to upper roller; mechanical drive is employed for driving lower rollers. Upper roller ascends or descends at the central symmetric location of the lower rollers; the ascending and descending are hydraulic driven. Upper roller moves to the left or right position to prepare for pre-bending work. The limited switches control the shift position. The upper roller movement is PLC controlled and LCD display is employed for displacement.
Hydraulic drive is employed for dumping and resetting of the reverse head unit.
Moving control is employed for the control system; you can operation the machine at any position around the machine.


N

Model

Upper
Roller Pressure
Tons

Bending thickness

Length
mm

Up-
roller

(mm)

lower
roller

(mm)

Cent.
distance
(mm)

Motor
(kw)

Asymmetry
(mm)

Symmetry
(mm)

drive

hydraulic

shift

1

W11S-15x2000

75

12

15

2000

255

150

245

7.5

4

1.1

2

W11S-14x2500

75

10

14

2500

270

150

245

7.5

4

1.1

3

W11S-13x3000

75

9

13

3000

290

150

245

7.5

4

1.1

4

W11S-17x2500

100

13

17

2500

300

165

270

15

5.5

1.5

5

W11S-15x3000

100

11

15

3000

325

165

270

15

5.5

1.5

6

W11S-20x2500

130

16

20

2500

330

180

300

15

5.5

2.2

7

W11S-18x3000

130

14

18

3000

350

180

300

15

5.5

2.2

8

W11S-22x2500

160

18

22

2500

360

200

330

18.5

7.5

2.2

9

W11S-20x3000

160

16

20

3000

375

200

330

18.5

7.5

2.2

10

W11S-18x3500

160

14

18

3500

390

200

330

18.5

7.5

2.2

11

W11S-25x2500

190

21

25

2500

380

220

360

22

7.5

4

12

W11S-22x3000

190

19

22

3000

400

220

360

22

7.5

4

13

W11S-20x3500

190

16

20

3500

410

220

360

22

7.5

4

14

W11S-30x2500

230

25

30

2500

410

235

380

30

11

4

15

W11S-27x3000

230

22

27

3000

425

235

380

30

11

4

16

W11S-25x3500

230

21

25

3500

440

235

380

30

11

4

17

W11S-33x2500

270

28

33

2500

430

250

400

37

11

4

18

W11S-30x3000

270

25

30

3000

450

250

400

37

11

4

19

W11S-28x3500

270

23

28

3500

470

250

400

30

11

4

20

W11S-25x4000

270

20

25

4000

490

250

400

30

11

4

21

W11S-36x2500

320

30

36

2500

460

260

420

37

15

5.5

22

W11S-32x3000

320

28

32

3000

480

260

420

37

15

5.5

23

W11S-28x3500

320

25

28

3500

500

260

420

37

15

5.5

24

W11S-26x4000

320

22

26

4000

520

260

420

37

15

5.5

25

W11S-40x2500

380

35

39

2500

500

275

460

45

22

5.5

26

W11S-35x3000

380

32

35

3000

510

275

460

45

22

5.5

27

W11S-32x3500

380

28

32

3500

530

275

460

45

22

5.5

28

W11S-30x4000

380

25

30

4000

550

275

460

45

22

5.5

29

W11S-45x2500

430

40

43

2500

520

290

500

55

22

7.5

30

W11S-38x3000

430

35

38

3000

540

290

500

55

22

7.5

31

W11S-36x3500

430

30

36

3500

560

290

500

55

22

7.5

32

W11S-32x4000

430

28

32

4000

580

290

500

55

22

7.5
