Proudct Detail

Product Name:

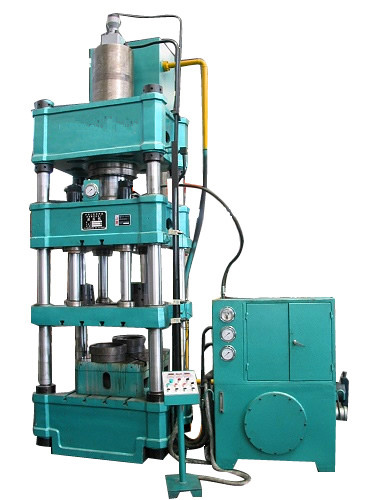

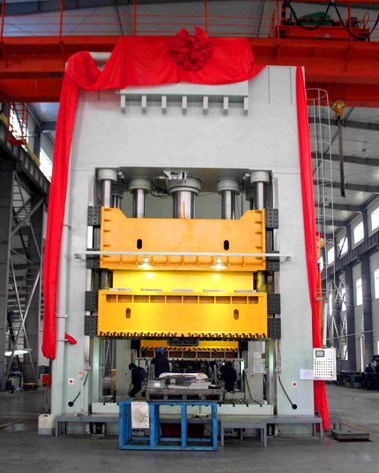

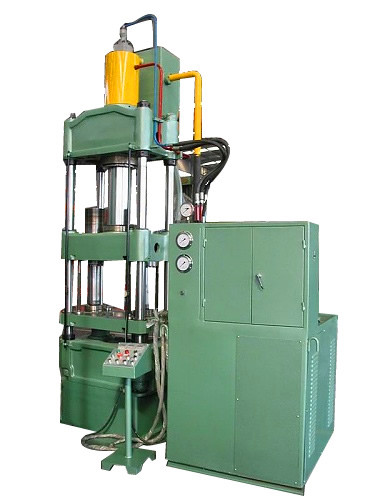

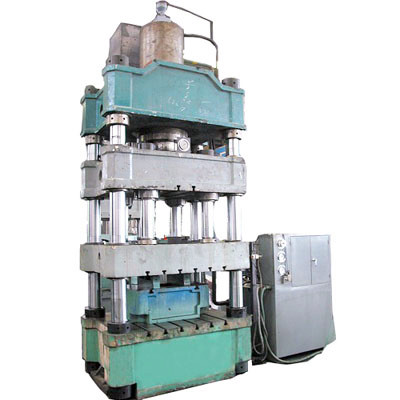

Double Action Hydraulic Press

Model: Y28-1600/2100

Categories: Double-action Hydraulic Drawing Press

View En large Image

The fuselage may use four columns or the portal frame construction. The tetrastysle structure simple ,econnmical ,is practical;The frame posture tension bar pre-tight struture,the precision high,the rigidity is good;Four jiao eight guidde rails,the guidance precision is high ,anti-plants ability ;The stretch,nearby the pressure the slide may through the positioning pin association be a body ,the realization single acting craft movement ;The hydraulic control uses installs valve integrative system and the fat liquor secondary filter installment ,the water cooling installment ;Attacks slight ,movement reliable ,releases dewpoint to be few .The import material cylinder seal part ,the relia-bility high ,the servicelife is long ;Machine ,the battery solution integration safety device ,like under the cylinder the cavity supporting returm route ,about the cylinder the cavity locks security mutually and so on return route is superior .PLC control,work keen reliable,may reliable,may realize the constant pressure,decide the regulation two kinds to take shape the craft ,and has the high spatial regulation and the working speed ,the production effciency is high.

Description:

Numbers	Description		Unit	YQ28-63/100	YQ28-100/140	YQ28-200/300	YQ28-315/400	YQ28-300/500
1	Rated Pressure		KN	1000	1400	3000	4000	5000
2	Maximum Press Ofliquid		Mpa	25	25	25	25	25
3	Drawing Force		KN	630	1000	2000	3150	3000
4	Blank Holder Pressure		KN	2×200	2×200	4×250	4×250	4×500
5	Ejection Force		KN	190	190	630	630	630
6	Central Hole Size of Blank-holder Slide		mm	φ260	φ330	φ420	φ500	800×600
7	Max.Operating Height of Drawing Slide		mm	1100	1100	1480	1650	2000
8	Max. Operating Height of Blank-holder Slide		mm	590	550	900	1000	1100
9	Max. Stroke of Drawing Slide		mm	600	600	700	800	900
10	Max.stroke of blank-holder slide		mm	300	300	400	400	400
11	Ejection cylinder stroke		mm	200	200	300	300	300
12	Speed of drawing slide	Descent	mm／s	120	120	100	100	150
		Pressing	mm／s	12~14	10~14	12~18	6~10	20~24
		Return	mm／s	120	120	80	60	160
13	Size of drawing slide	L-R	mm	720	720	1000	1260	1500
13	Size of drawing slide	F-B	mm	580	620	900	1200	1500
14	Size of blank-holder slide	L-R	mm	720	720	1000	1260	1500
14	Size of blank-holder slide	F-B	mm	580	620	900	1200	1500
15	Size of table	L-R	mm	720	720	1000	1260	1500
15	Size of table	F-B	mm	580	620	900	1200	1500
16	Motor power		KW	7.5	7.5	22	22	2×30

Numbers	Description		Unit	YQ28-400/630	YQ28-500/800	YQ28-1200/1800	YQ28-1600/2100	YQ28-2000/2600
1	Rated Pressure		KN	6300	8000	18000	21000	26000
2	Maximum Press Ofliquid		Mpa	25	25	25	25	25
3	Drawing Force		KN	4000	5000	12000	16000	20000
4	Blank Holder Pressure		KN	4×630	4×800	4×1500	4×1250	4×1500
5	Ejection Force		KN	1000	1600	1600	1600	1600
6	Central Hole Size of Blank-holder Slide		mm	1400×800	900×550	3540×1970	1840×1240	2040×1840
7	Max.Operating Height of Drawing Slide		mm	2200	2020	2600	2000	4500
8	Max. Operating Height of Blank-holder Slide		mm	1450	1500	2400	2000	4500
9	Max. Stroke of Drawing Slide		mm	800	900	1350	1000	2000
10	Max.stroke of blank-holder slide		mm	900	900	1350	1000	2000
11	Ejection cylinder stroke		mm	350	350	400	400	400
12	Speed of drawing slide	Descent	mm／s	120	100	120~150	120~150	120
		Pressing	mm／s	10~16	10~15	15~20	10~15	10~16
		Return	mm／s	80	80	100	100	80
13	Size of drawing slide	L-R	mm	2500	1600	3500	1800	2000
13	Size of drawing slide	F-B	mm	1700	1600	1930	1200	1800
14	Size of blank-holder slide	L-R	mm	2500	1600	4500	2600	3500
14	Size of blank-holder slide	F-B	mm	1700	1600	2500	2200	3500
15	Size of table	L-R	mm	2500	1600	4500	2600	3500
15	Size of table	F-B	mm	1700	1600	2500	2200	3500
16	Motor power		KW	2×22	45+22	3×45	3×45	3×45
