Proudct Detail
 |
Product Name:

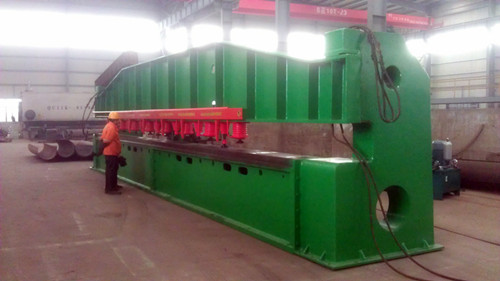

Edge Milling Machine
Model: QR-XBJ-9
Categories: Edge Milling Machine
Specifications
1.Various metal plate milling
2.Used for edge process
3.High effective,low energy and easy operation.
Description:
The edge milling machine is used for steel plate milling,it is of low price,high efficiency,low energy,easy operation and other functions.
The processing thickness is from 6mm to 50mm,it is an ideal choice.
The main tachnical parameters are as below:
|
Type |
Milling length (mm) |
Milling thickness |
Milling speed (mm/min) |
Feeding motor power(KW) |
Milling motor power(KW) |
Oil pump motor power(kw) |
|
QR-XBJ-4 |
4000 |
6-50 |
100-1000 |
1.5 |
5.5 |
5.5 |
|
QR-XBJ-6 |
6000 |
6-50 |
100-1000 |
1.5 |
5.5 |
5.5 |
|
QR-XBJ-9 |
9000 |
6-50 |
100-1000 |
1.5 |
5.5 |
5.5 |
|
QR-XBJ-12 |
12000 |
6-50 |
100-1000 |
1.5 |
5.5 |
5.5 |
