Proudct Detail

Product Name:

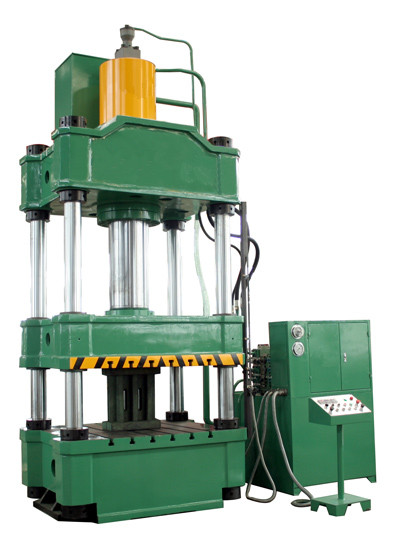

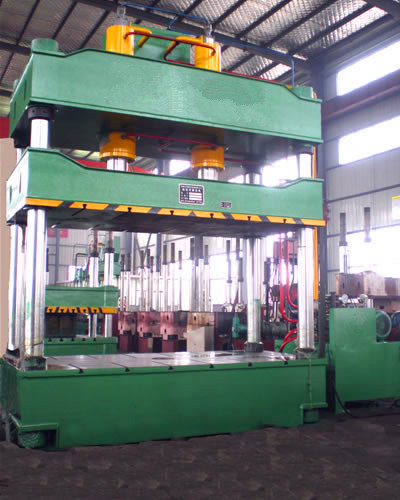

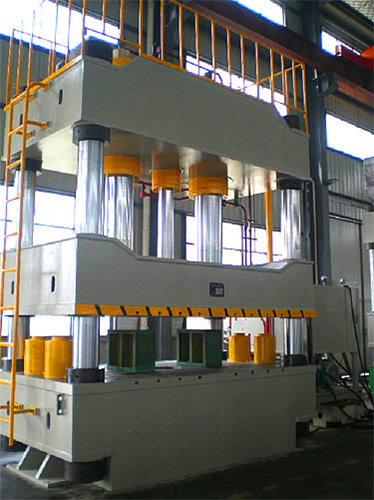

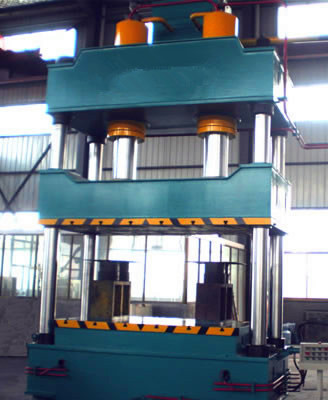

Four Column Hydraulic Press

Model: Y32-1000

Categories: Four Column

View En large Image

This machine is suitable for the plastic material suppressed craft,like flushes carries,is curving,the flange,the thin steel plate stretch and so on. Also may be engaged in the adjustment,the pressure attire,the grinding wheel takes shape,the cold extrusion metal parts takes shape,the plastic product and the powder product suppression takes shape the craft,affter is joined to the blanking buffer mechanism to be possible to use in the punch holes,the material processing. This machine has the independent actuating unit and the electrical system,and uaes the button common control,may realize the adjustment, manual and the semiautomatic three operating mode. This machine working pressure,the suppressed speed,the travelling schedule scope may need to carry on the adjustment according to the craft.And can complete the constant pressure and decide the regulation two crafts ways,craft of way the constant pressure has after the suppression guarantees presses with the time delay automatic return trip movement

Description:

	MODEL	MODEL	MODEL
Numbers	Parameter	Unit	Y32-40	Y32-63	Y32-100	Y32-100	Y32-160
1	Rated pressure	KN	400	630	1000	1000	1600
2	Knock-out pressure	KN	120	190	190	190	400
3	Max. pressure of liquid	Mpa	25	25	25	25	25
4	Stoke of slide	mm	450	500	600	600	700
5	Stoke of knock-out	mm	150	200	200	200	200
6	Destance between	mm	700	750	880	880	900
7	Slide Speed	Empty de	mm/s	20	20	22	120	100
		Pressing	mm/s	14	14	14	14	12
		Retum	mm/s	45	120	47	120	70
8	Effective working table	L-R	mm	500	580	720	720	680
8	Effective working table	F-B		460	500	580	580	620
9	Overall Dimension	L-R	mm	2000	2400	2500	2500	2700
		F-B		1300	1400	1500	1500	1700
		Height a		2600	3100	2950	2950	3400
10	Motor power	KW	5.5	7.5	7.5	7.5	7.5
Numbers	Parameter	Unit	Y32-200	Y32-315	Y32-400	Y32-500	Y32-500
1	Rated pressure	KN	2000	3150	4000	5000	5000
2	Knock-out pressure	KN	400	630	630	1000	1000
3	Max. pressure of liquid	Mpa	25	25	25	25	25
4	Stoke of slide	mm	700	800	800	900	900
5	Stoke of knock-out	mm	250	300	300	350	350
6	Destance between	mm	1100	1250	1250	1500	1500
7	Slide Speed	Empty de	mm/s	100	100	100	100	100
		Pressing	mm/s	8	6-8	5-7	5	6
		Retum	mm/s	52	60	45	70	70
8	Effective working table	L-R	mm	1000	1260	1240	1400	2400
8	Effective working table	F-B		900	1200	1200	1400	1400
9	Overall Dimension	L-R	mm	3100	3235	3235	4060	6500
		F-B		1800	2060	2200	3520	3800
		Height a		3500	4295	4500	4995	4740
10	Motor power	KW	15	15	15	37	37
Numbers	Parameter	Unit	Y32-630	Y32-800	Y32-1000	Y32-1250	Y32-1600
1	Rated pressure	KN	6300	8000	10000	12500	16000
2	Knock-out pressure	KN	1000	1600	2000	2000	2000
3	Max. pressure of liquid	Mpa	25	25	25	25	25
4	Stoke of slide	mm	900	900	900	900	900
5	Stoke of knock-out	mm	350	350	400	400	400
6	Destance between	mm	1500	1500	1600	1600	1600
7	Slide Speed	Empty de	mm/s	80	80	80	80	80
7	Slide Speed	Pressing	mm/s	10	8	10	6-10	6-10

		Retum	mm/s	60	70	60	50	40
8	Effective working table	L-R	mm	1500	1500	1580	1700	2000
8	Effective working table	F-B		1500	1400	1600	1600	1600
9	Overall Dimension	L-R	mm	4200	4800	5250	5250	5800
		F-B		4200	4000	3800	3800	4000
		Height a		5600	6000	6800	7000	6200
10	Motor power	KW	44	60
Numbers	Parameter	Unit	Y32-2000
1	Rated pressure	KN	20000
2	Knock-out pressure	KN	3200
3	Max. pressure of liquid	Mpa	26
4	Stoke of slide	mm	1300
5	Stoke of knock-out	mm	500
6	Destance between	mm	1800
7	Slide Speed	Empty de	mm/s	110
		Pressing	mm/s	4-9
		Retum	mm/s	70
8	Effective working table	L-R	mm	3200
8	Effective working table	F-B		2200
9	Overall Dimension	L-R	mm	4500
		F-B		3200
		Height a		7200
10	Motor power	KW
