Proudct Detail

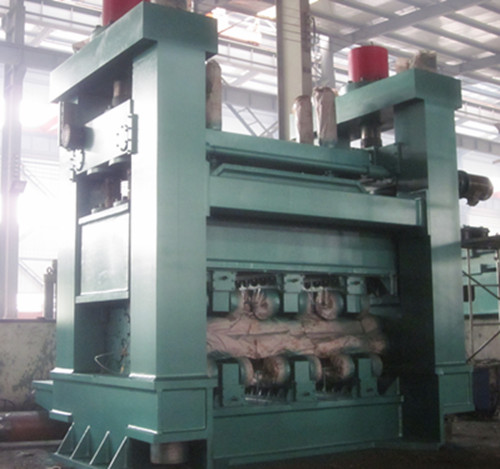

Product Name:

Heavy Duty Plate Levelling

Model: QR-WG43-20x4000
Performance features for heavy duty leveling machine: ◆ The machine employs a four-high structure of a leveling roll and multi-group support rolls. ◆ Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection. ◆ Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface. ◆ Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection. ◆ Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear. ◆ Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry. ◆ Adjustment methods: manual and electrical adjustment. ◆ Lubrication methods: mainly focus on lubrication operated by manual or electric pump. ◆ Applications: specially for general leveling for thick carbon steel plates
Description:
Performance features for heavy duty leveling machine:

◆  Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
◆  Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
◆  Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
◆  Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
◆  Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
◆  Adjustment methods: manual and electrical adjustment.
◆  Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
◆  Applications: specially for general leveling for thick carbon steel plates
