Proudct Detail
Product Name:

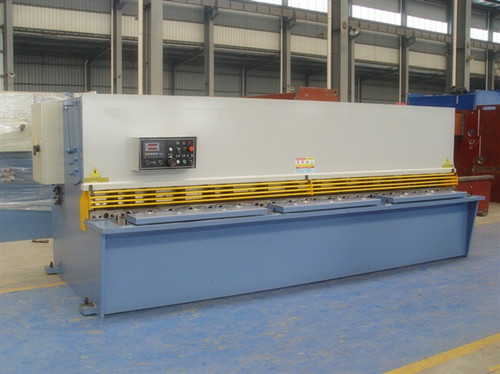

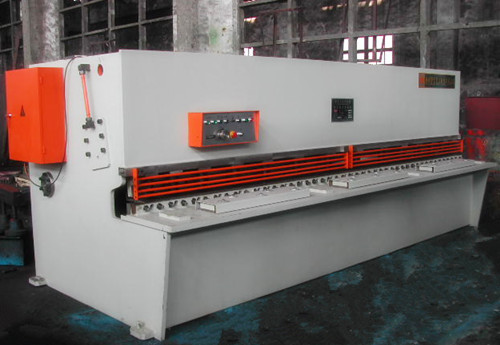

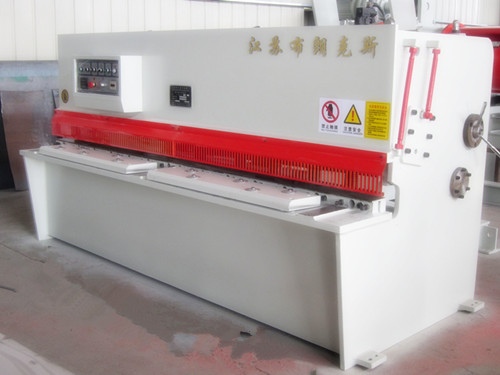

Hydraulic Swing Beam Shearing

Model: QC12Y-12x4000
Categories: Hydraulic Swing Beam Shearing Machine
View En large Image
Performance features for hydraulic swing beam shearing machine: 1.It’s very popular in metalworking market for cutting metal sheets 2.Various model of cutting 4-40mm thickness and 1000-9000mm length. 3.Steel welded construction, vibrating aging function 4.Shearing gap can be adjusted stepless at will and can do sectional cut 6.Motorized back gauge and cutting number can digital readout 7.Power break protection device to guarantee safety during maintenance 8. Debug and goodafter-sales service
Description:
Hydraulic swing beam shear technical details:
Example: QC12Y-4X2500 means to cut 4 mm thickness x 2500 mm width mild steel.

NO

Model

Strokes
n/min

Back Gauge
mm

Shearing Angle
mm

Main Power
KW

Dimension
L×W×H

1

QC12Y-4×2500

18

20-600

1.30°

5.5

3100x1600x1700

2

QC12Y-4×3200

18

20-600

1.30°

5.5

3700x1700x1750

3

QC12Y-6×2500

16

20-600

1.30°

7.5

3150×1650×1700

4

QC12Y-6×3200

14

20-600

1.30°

7.5

3860×1810×1750

5

QC12Y-6×4000

10

20-600

1.30°

7.5

4630×2030×1940

6

QC12Y-8×2500

14

20-600

1.30°

11

3170×1700×1700

7

QC12Y-8×3200

12

20-600

1.30°

11

3870×1810×1780

8

QC12Y-8×4000

10

20-600

1.30°

11

4680×1900×1860

9

QC12Y-12×2500

10

20-800

1.30°

15

3270×1730×1800

10

QC11Y-12×3200

9-25

20-800

0.5°-2.5°

15

3990×2250×2200

11

QC11Y-12×4000

6-20

20-800

0.5°-2.5°

15

4720×2490×2500

12

QC11Y-12×5000

7-20

20-1000

0.5°-2.5°

22

5720×2600×2800

13

QC11Y-12×6000

6-20

20-1000

0.5°-2.5°

30

6720×2500×2550

14

QC11Y-16×2500

9-20

20-800

0.5°-2.5°

22

3100×1970×2200

15

QC11Y-16×3200

8-20

20-800

0.5°-2.5°

22

3900×1970×2350

16

QC11Y-16×4000

8-15

20-800

0.5°-2.5°

22

4760×1900×2560

17

QC11Y-16×5000

7-15

20-1000

0.5°-2.5°

30

5760×2200×2750

18

QC11Y-16×6000

6-15

20-1000

0.5°-2.5°

37

6780×2450×3070

19

QC11Y-20×2500

7-20

20-1000

0.5°-3°

30

3300×1900×2510

20

QC11Y-20×3200

6-20

20-1000

0.5°-3°

30

3900×2200×2530

21

QC11Y-25×2500

6-15

20-1000

1.5°-3.5°

37

3300×2000×2650
