Proudct Detail
 |
Product Name:

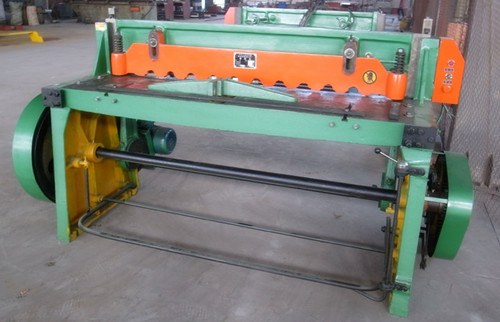

Mechanic Shearing Machine
Model: Q11-3x1500
Categories: Mechanic Shearing Machine
Performance features for mechanic shearing machine:
1.Tungsten Steel Edged Guillotine Shear Blades which give a long cutting life
2.Extra long guides for the cutting beam
3.Extra long side gauges or squaring cuts, these can be fitted in a number of positions on the table and thus save undue wear at any one point of the shear blades.
4. Front gauge with extension brackets and back gauge, which is fitted with movable gauging points of hardened steel
5.Guards enclose the Flywheel, the Vee belts, the gears and the primary drive shaft
Description:
|
Model |
Shearing thickness |
Max Width |
Shearing Angle |
Stroke Times |
Back gauge |
Poder |
Dimension |
|
Q11-2×1000 |
2 |
1000 |
1°30' |
75 |
350 |
1.5 |
1580×1450×1080 |
|
Q11-2×1300 |
2 |
1300 |
1°30' |
75 |
350 |
1.5 |
1580×1450×1100 |
|
Q11-3×1200 |
3 |
1200 |
2°25' |
55 |
350 |
2.2 |
1980×1500×1300 |
|
Q11-3×1300 |
3 |
1300 |
2°14' |
55 |
350 |
3 |
2080×1550×1300 |
|
Q11-3×1500 |
3 |
1500 |
2° |
55 |
350 |
3 |
2280×1500×1300 |
|
Q11-4×2000 |
4 |
2000 |
1°30' |
25 |
500 |
5.5 |
3050×1900×1350 |
|
Q11-4×2500 |
4 |
2500 |
1°30' |
25 |
500 |
5.5 |
3580×1900×1350 |
|
Q11-4×3200 |
4 |
3200 |
1°14' |
20 |
500 |
7.5 |
4200×1960×1350 |
|
Q11-6.3×2000 |
6.3 |
2000 |
2° |
40 |
500 |
5.5 |
3160×1760×1530 |
|
Q11-6×2500 |
6 |
2500 |
1°45' |
40 |
500 |
7.5 |
3660×1760×1530 |
|
Q11-8×2500 |
8 |
2500 |
1°57' |
45 |
500 |
11 |
3680×2160×1550 |
|
Q11-13×2500 |
13 |
2500 |
3° |
30 |
600 |
15 |
3580×2300×2500 |
|
Q11-16×2500 |
16 |
2500 |
3° |
30 |
700 |
18.5 |
3680×2600×2500 |
|
Q11-20×2500 |
20 |
2500 |
3° |
25 |
700 |
30 |
3850×2800×2800 |
