Proudct Detail

Product Name:

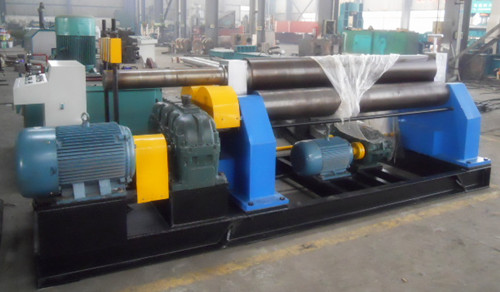

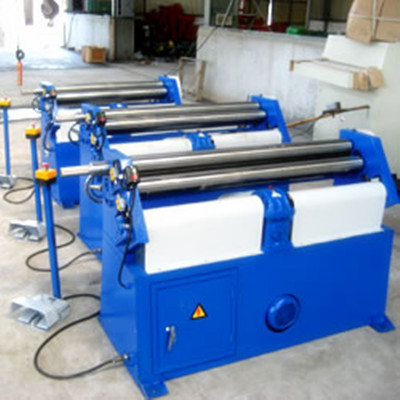

Mechanical 3-Roller Symmetrical

Model: QR-W11-20x2500

Categories: Mechanical 3-Roller Symmetrical

View En large Image

This machine structure pattern three roller symmetrical type, have roller act as vertical sport of going up and down in two roller central symmetrical position, but acquisition through the mother’s worm transmission of pole silk of silk, the roller two times does rotatory sports, through moderate output gear wheel of plane and lay roller gear wheel clench the teeth , make for roll panel offer torsion.

Description:

three rollers
◊ Mechanical drive
◊ symmetry bending, easy to be operated.

N.	Model	Bending Thiskness mm	Bending width mm	Yield Limited (Mpa)	Bending Speed (m/min)	Min. Bending Diameter mm	Up roller (mm)	Low roller (mm)	Cen. Distance mm	Main Motor (Kw)
1	W11-4*1500	4	1500	245	5	300	150	140	185	3
2	W11-6*1500	6	1500	245	5	380	160	140	220	4
3	W11-6*2000	6	2000	245	4.5	380	170	160	260	5.5
4	W11-6*3200	6	3200	245	4.5	380	220	180	280	7.5
5	W11-8*2000	8	2000	245	4.5	400	185	170	260	5.5
6	W11-8*2500	8	2500	245	4.5	550	240	200	300	11
7	W11-12*2000	12	2000	245	4.5	550	240	200	300	11
8	W11-12*2500	12	2500	245	4.5	600	260	220	320	11
9	W11-12*3000	12	3000	245	4	700	280	240	360	15
10	W11-16*2000	16	2000	245	4	600	260	220	320	11
11	W11-16*2500	16	2500	245	4	700	280	250	360	15
12	W11-16*3200	16	3200	245	4	650	340	260	430	18.5
13	W11-20*2000	20	2000	245	4	700	280	250	360	15
14	W11-20*2500	20	2500	245	4	850	340	280	430	18.5
15	W11-25*2000	25	2000	245	4	850	340	280	430	18.5
16	W11-25*2500	25	2500	245	4	900	360	300	480	22
17	W11-30*2500	30	2500	245	4	1200	420	360	550	30
18	W11-30*3000	30	3000	245	4	1200	450	390	600	37
