Proudct Detail

Product Name:

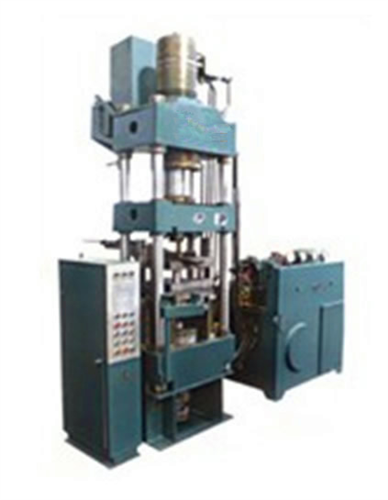

Powder Molding Hydraulic Press

Model: Y79Z-500

Categories: Hydraulic Powder Molding Press

View En large Image

This series hydraulic press has "automatically (manual)adds the powder tertiary , pre-ssurizes ,lags behind the drowinig of patterns" and so on the craft movement ,had guarant-eed the powder product takes shape the smooth exhaust and the product density even. The hydraulic system uses inserts the valve integrative system,the fat liquor secondary filter system and the water cooling installment ,first flange type structure ,hose connec-tion,thus guarantee machine movement stable .attacks alightly ,releases the dew point to be few ;Uses,the low pressure combination high pumps for the oil way ,reduced the consumption. The electrical system uses imports PLC,the time relay control,may realize "desides the regulation control ,the pressure protection "and "the pressure control ,the position protection" two suppressed ways ,has the adjustment ,semiautoment,the completely automatic three operating modes and "goes against the drawing of parterns,lags behind the protection drawing of patterns ,the micro protects the drawing of patterns" three drawing of patterns ways ,by adapts each kind of perpormance material and shape each different product need. This series hydraulic press has tetrastyle ,the overall frame two kind of structural styles.

Description:

Numbers	Parameter	Unit	YQ79Z-40	YQ79Z-63	YQ79Z-100	YQ79Z-160	YQ79Z-200
1	Rated pressure	KN	400	630	1000	1600	2000
2	Knock-out pressure	KN	160	160	160	310	400
3	Max.pressure ofliquid	Mpa	25	25	25	25	25
4	Max.speed of slide	mm	450	500	600	700	700
5	Stroke of knock-out	mm	150	200	200	200	250
6	daylight	mm	1000	1000	1200	1200	1200
7	Speed of slide	Descent	mm/s	160	180	220	160	100
8		Pressing	mm/s	20~25	18~20	10~14	10~15	12~18
9		Return	mm/s	120	100	120	70	70
10	Speed of knock-out cylinder	Knock-out	mm/s	60	60	60	75	60
11	Speed of knock-out cylinder	Return	mm/s	100	90	90	80	120
12	Dimensions of table	L-R	mm	500	570	720	720	1000
12	Dimensions of table	F-B	mm	460	500	580	620	900
13	Overal dimensions of machinery	L-R	mm	2200	2500	2800	2800	3270
		F-B	mm	1250	1250	1300	1500	3100
		Height above floor	mm	3300	3400	3600	4000	3725
14	Motor power	KW	5.5	7.5	11	15	22

Numbers	Parameter		Unit	YQ79Z-250	YQ79Z-315	YQ79Z-500	YQ79Z-630
1	Rated pressure		KN	2500	3150	5000	6300
2	Knock-out pressure		KN	400	630	1000	1500
3	Max.pressure ofliquid		Mpa	25	25	25	25
4	Max.speed of slide		mm	700	800	900	900
5	Stroke of knock-out		mm	250	300	350	350
6	daylight		mm	1200	1500	1750	2450
7	Speed of slide	Descent	mm/s	100	100	100	100
8		Pressing	mm/s	8~12	8~10	10~15	6~10
9		Return	mm/s	70	60	70	60
10	Speed of knock-out cylinder	Knock-out	mm/s	60	60	80	40
11	Speed of knock-out cylinder	Return	mm/s	120	60	160	55
12	Dimensions of table	L-R	mm	1000	1260	1400	1400
12	Dimensions of table	F-B	mm	900	1200	1400	1200
13	Overal dimensions of machinery	L-R	mm	5100	900	6275	5820
		F-B	mm	4200	3235	2785	2000
		Height above floor	mm	4545	2060	5045	5560
14	Motor power		KW	22	22	50	50
