Proudct Detail

Product Name:

Single Column Hydraulic Press

Model: Y30-200

Categories: Single Column

View En large Image

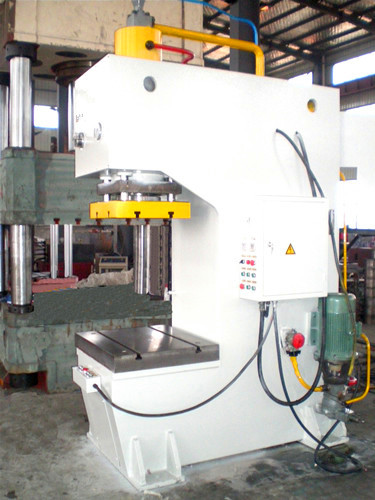

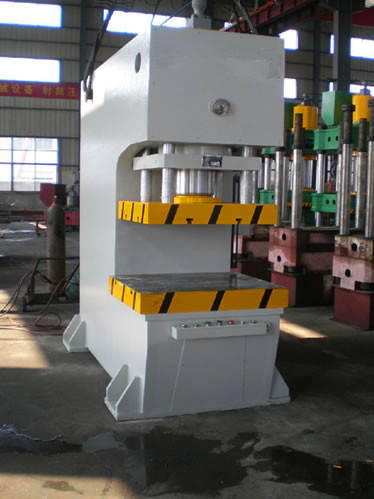

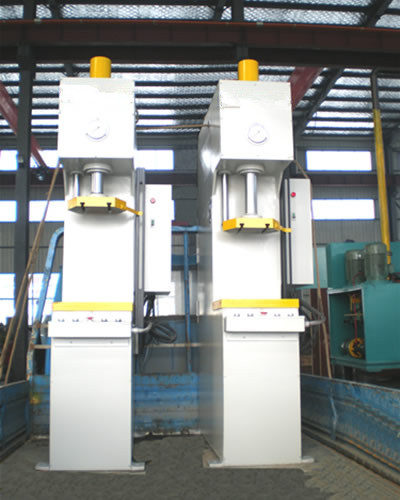

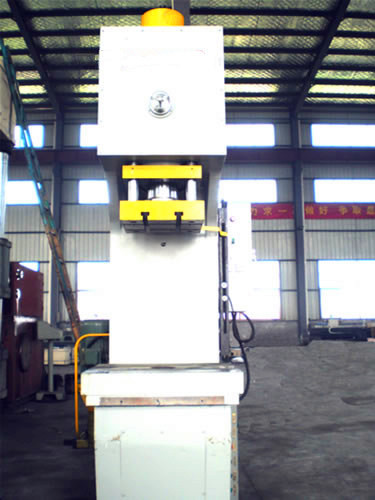

The series hydraulic press is C-frame Single-column structure and the whole machine body is jointed with steel. The hydraulic sys lies inside the body. Under the worktable does equip with hydraulic cushion. The electric control system applies “PC” program controller with button central controlled to achieve adjusting, manual and semi-automatic operation. The series hydraulic press applies to techniques including the drawing, punching, bending, crimping, amendment, pushing mounting, cold and hot extrusion, etc of metal materials as well as powder and plastic products for press forming. The operation is very convenient with C-frame single arm structure. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic base. Working press stroke can be adjustable within the specific range. The series hydraulic press applies to techniques including the drawing, bending, incusing, blanking, amendment, pushing mounting, etc of metal parts as well as the forming of general powder and abrasive products, plastic products and insulating materials for press forming.....

Description:

Numbers	Description		Unit	Y30-25	Y30-40		Y30-63		Y30-100		Y30-160
1	Rated pressure		KN	250	400		630		1000		1600
2	Max.pressure ofliquid		Mpa	16	25		25		25		25
3	Stroke of slide		mm	400	400		500		600		700
4	Daylight		mm	630	630		750		800		900
5	Throat light		mm	350	350		320		400		420
6	Stroke of slide	Descent	mm/s	80	80		120		100		80
		Pressing	mm/s	18~20	18~20		18~20		15~20		10~12
		Return	mm/s	75	75		100		100		70
7	Size of working table	L-R	mm	580	700		710		800		900
		F-B	mm	570	570		600		700		800
8	Table height above floor		mm	710	710		810		800		900
9	Dimension of dropping hole		mm	Φ100	Φ100		Φ100
10	Motor power		KW	5.5	5.5		7.5		7.5		11
Numbers	Description		Unit	Y30-200		Y30-315		Y30-400		Y30-500		Y30-630
1	Rated pressure		KN	2000		3150		4000		5000		6300
2	Max.pressure ofliquid		Mpa	25		25		25		25		25
3	Stroke of slide		mm	700		800		800		900		900
4	Daylight		mm	1000		1100		1250		1300		1500
5	Throat light		mm	450		800		1500		1500		1500
6	Stroke of slide	Descent	mm/s	80		80		80		80		80
		Pressing	mm/s	10~15		8~10		8~10		10~15		6~10
		Return	mm/s	70		60		55		70		60
7	Size of working table	L-R	mm	900		1500		2000		2500		2500
		F-B	mm	900		1500		1800		2000		2000
8	Table height above floor		mm	900		400		400		400		400
9	Dimension of dropping hole		mm
10	Motor power		KW	15		22		22		2×22		2×22
Numbers	Description		Unit	Y30-800
1	Rated pressure		KN	8000
2	Max.pressure ofliquid		Mpa	25
3	Stroke of slide		mm	900
4	Daylight		mm	1500
5	Throat light		mm	1500
6	Stroke of slide	Descent	mm/s	80
		Pressing	mm/s	5~8
		Return	mm/s	45
7	Size of working table	L-R	mm	3000
		F-B	mm	2400
8	Table height above floor		mm	400
9	Dimension of dropping hole		mm
10	Motor power		KW	45
