Proudct Detail
Product Name:

grooving machine

Model: QR-KC-1220x4000
Categories: V Grooving Machine
View En large Image

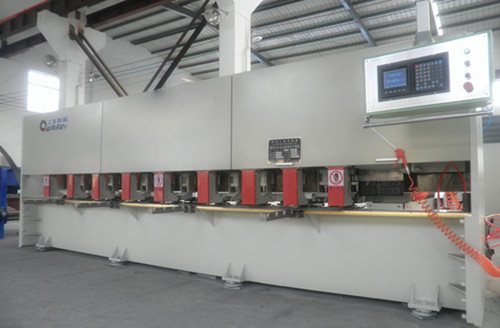

The machine is mainly used in aluminum and stainless steel V slot processing before metal bending. The machine makes the work piece not only keep the original rigidity but also overcome the great round and flat surface defects of change in the common bending. The machine is widely used in architectural decoration, shipping, furniture, elevator, the kitchen equipment industry and so on.
Description:

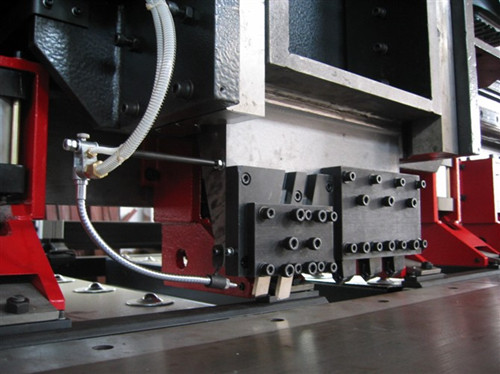

1.The equipment adopts the big pitched ball screw and high torque servo motors as the main drive, which makes knives more stable and faster when processing. The worktable of high strong plate as the surface makes the work pieces not easy to wear in machining. A panel with the adjustable fuselage during the work piece activities makes the point to every bit precision in 0.02 mm.

2. Machine interface programming allows the operating personnel easy to understand and locate accurately. Incoming materials use all the pressure pneumatic control; it makes the energy conservation and environmental protection concepts true. Equipments' overall modeling is concise and beautiful, in line with the world people's aesthetic standard.

(QR-KC-1220-4000
External dimensions)
5600×2200×2100
Thickness range for plant to be processed
0.6mm-4mm
Length for plant to be processed
4000mm
Width for plant to processed
1220mm
Cutting velocity
15m/min-60m/min
Single blade cutting area
2.25mm
Feed rate
2m/min-0m/min
Y axis minimun unit set
0.01mm
Y axis minimunpositioning accuracy
±0.05mm
X axis motor power
W＝4KW
Y axis motor power
W＝4KW
Z axis motor power
W＝4KW
Pneumatic pressure
0.4Map-0.6Map
Dimension
5600mm×2200mm×2100mm
