Proudct Detail
Product Name:

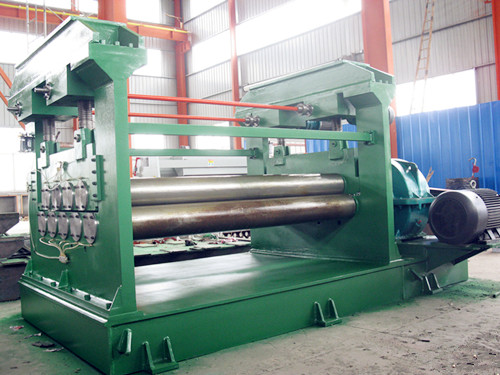

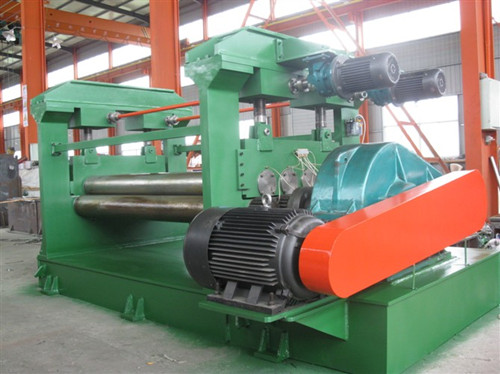

Two-High Plate Levelling

Model: CQR-WG43-3x1500
Categories: Two-High Levelling
Performance features for Two-high leveling machine: ◆The machine employs a frame structure or the four-pillar prestressed frame structure; ◆The movable crossbeam, work roll and guide rolls on both sides can go up and down equally and simultaneously. The guide rolls can also go up and down equally and separately. ◆The feeding can be realized from both sides and it can be leveled repeatedly. ◆It is applicable to sheet levelling, which has undemanding for flatness. It is mainly used in industries such as stamping, rolling etc..
Description:
The movable crossbeam, work roll and guide rolls on both sides can go up and down equally and simultaneously.
he guide rolls can also go up and down equally and separately.
The feeding can be realized from both sides and it can be leveled repeatedly.
It is applicable to sheet levelling, which has undemanding for flatness.
It is mainly used in industries such as stamping, rolling etc..


Specification

Min Levelling thickness

Max Levelling thickness

Plate yield limit

Working roller distance

Working roller diameter

Working roller qtt.

Levelling speed

Main motor power

mm

mm

mpa

mm

mm

/

m/min

kw

CQR-1.5*800

0.3

1.5

235

80

75

17

2-10

7.5

CQR-2*800

0.5

2

235

85

80

15

2-10

11

CQR-2*1300

0.5

2

235

105

100

13

2-10

15

CQR-3*1500

1

3

235

125

120

11

2-10

37
